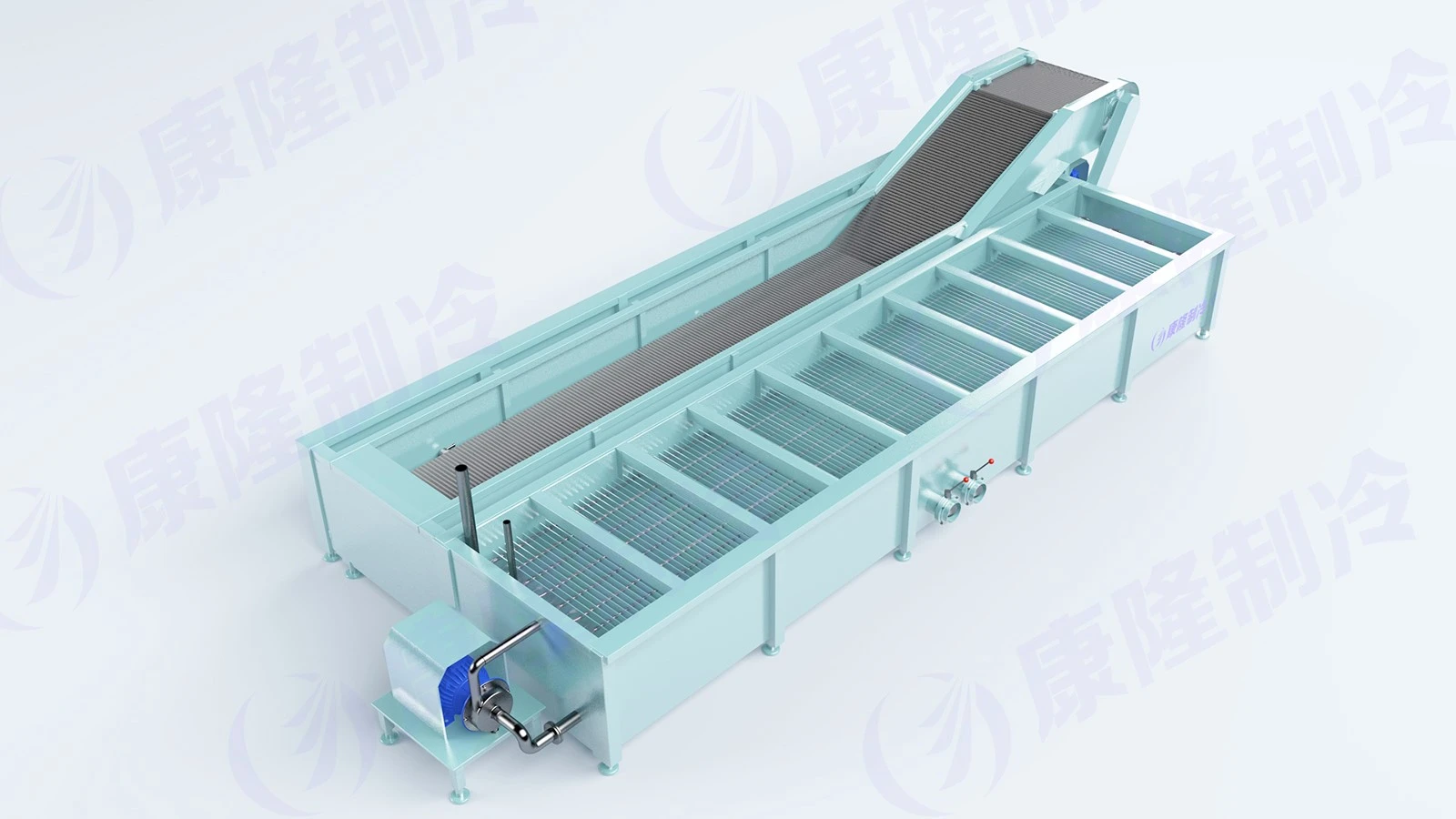

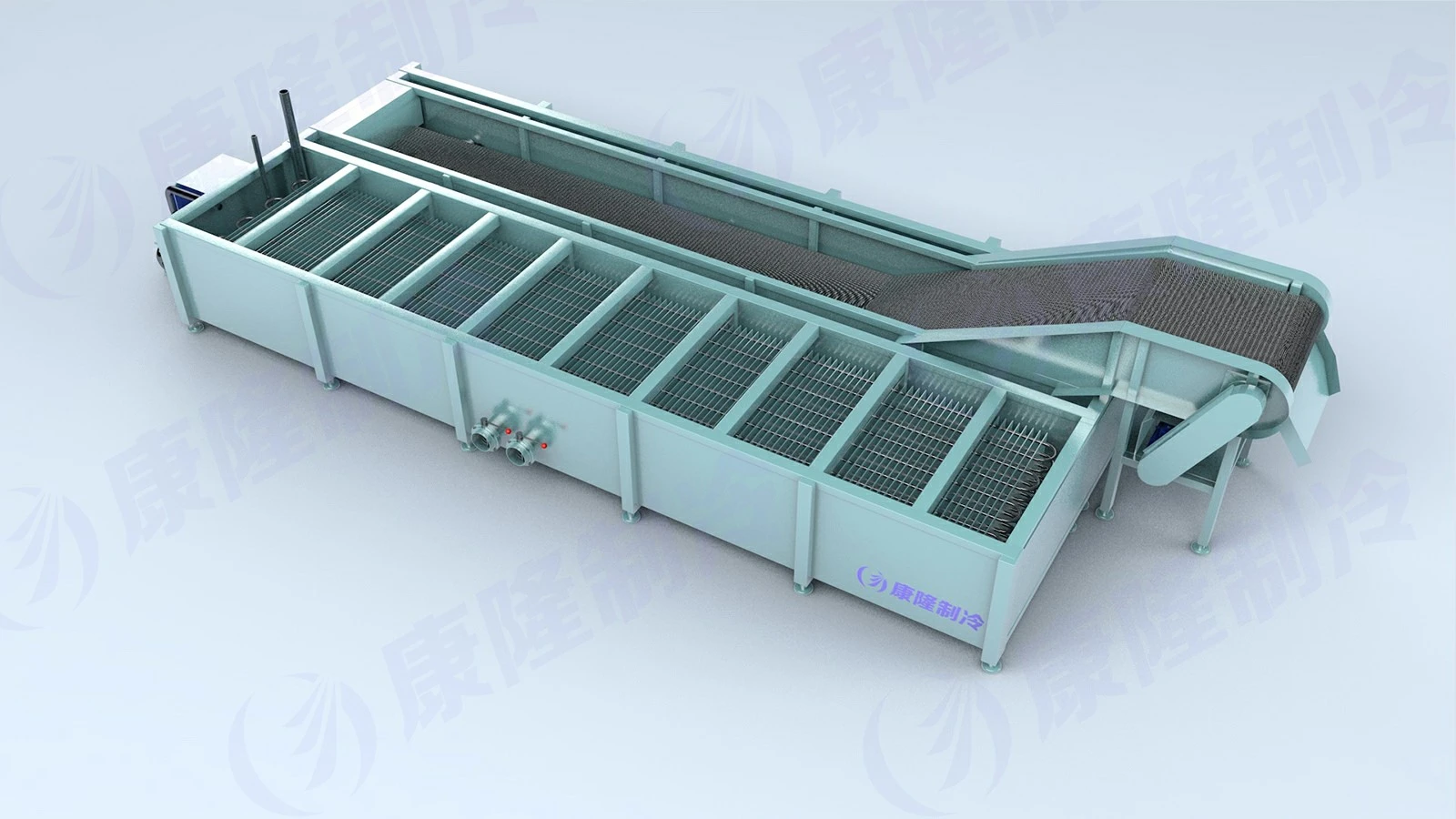

The Vegetable Pre-cooling Machine focuses on freshness protection. After blanching or hot-water treatment, vegetables need controlled cooling to stop overcooking, preserve color, and reduce texture loss. This machine provides a continuous cooling stage before dewatering, distributing, freezing, or packing.
For processors working with green beans, broccoli, corn, peas, diced carrots, or leafy vegetables, stable pre-cooling is directly linked to finished-product quality. The system can be designed with normal-temperature water, ice water, or a combined cooling arrangement depending on the required discharge temperature.
Technical Parameters
|
Dimensions |
5880*1600*1200mm |
|
Installed Power |
3.3kw |
|
Voltage |
380V, 50Hz |
|
Water Consumption |
0.3~0.5T/h (Recycled water) |
|
The Amount Of Steam Consumption |
/ |
|
Cooling Capacity |
50KW (Condition: +45°C~-5°C) |
|
Processing Capacity |
1.0T / H |
|
Feeding Form |
Mesh belt chain center width 600mm; frequency control; with a charging device, a de-doping device, a bubbling device, a spraying device, and a water filtering circulation device |
|
Electrical Control |
The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
|
Description Of Materials |
This equipment is made of SUS304 stainless steel except for standard parts such as motors and electrical appliances |
|
Equipment Use |
It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C |
|
Dimensions |
7100*1825*1200mm |
|
Installed Power |
3.7kw |
|
Voltage |
380V, 50Hz |
|
Water Consumption |
0.6 ~ 1T / h (Recycled water) |
|
The Amount Of Steam Consumption |
/ |
|
Cooling Capacity |
100KW (condition: +45°C~-5°C) |
|
Processing Capacity |
2.0T / H |
|
Feeding Form |
Mesh belt chain center width 600mm; frequency control; with a charging device, a de-doping device, a bubbling device, a spraying device, and a water filtering circulation device |
|
Electrical Control |
The electrical components are used by Zhejiang Zhengtai, and the transmission inverter is Taiwan Delta |
|
Description Of Materials |
This equipment is made of SUS304 stainless steel except for standard parts such as motors and electrical appliances |
|
Equipment Use |
It is used to cool the fruits and vegetables after blanching, so that the center temperature drops to about 15 °C |
Product Features
• Rapid cooling helps maintain natural color and product bite.
• Adjustable conveying speed supports different vegetable sizes and processing times.
• Stainless steel water tank is hygienic and suitable for wet food environments.
• Works well with blanchers, vibrating dewatering machines, elevators, and IQF freezers.
Q&A
Q: What details should I provide when selecting a machine?
A: To recommend the correct model, please tell us what product you process, the product size, temperature requirements, expected output, and your factory layout. Our engineers will suggest a suitable solution based on your production conditions.
Q: Do you offer customized solutions?
A: Yes. Machine dimensions, conveyor height, power requirements, material selection, and connection design can be adjusted to match your existing production line.
Q: Can it be used in food processing factories?
A: Yes. The equipment is designed for food industry applications with stainless steel construction and easy-to-clean features. We can also optimize the design according to your hygiene standards.
Q: Can it be installed as part of an existing production line?
A: Yes. The machine can be integrated with different processing systems, including cleaning, blanching, cooling, drying, freezing, sorting, and packing equipment.
