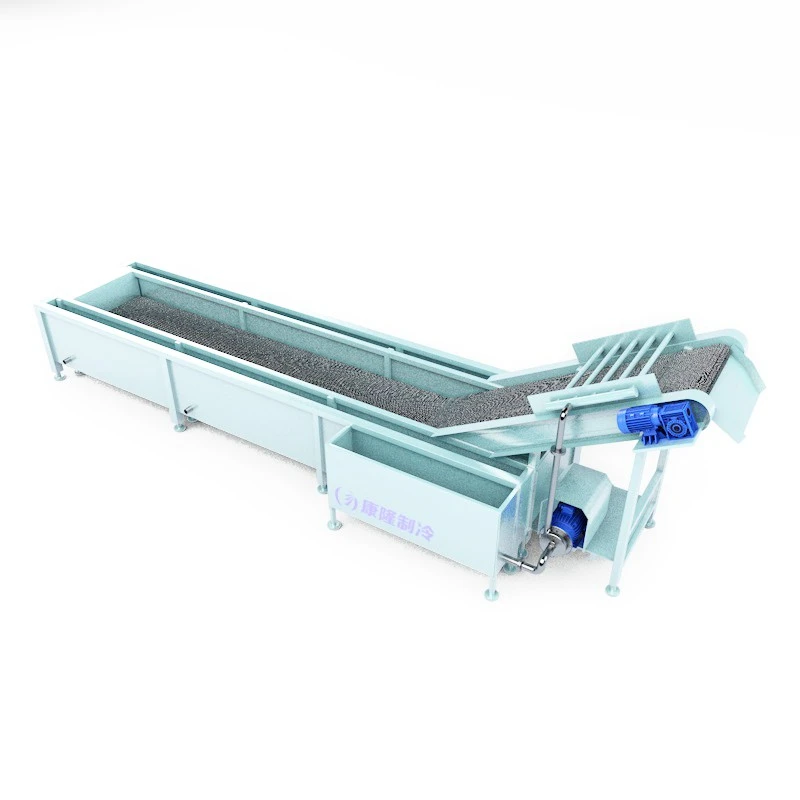

The Air Bubble Washing Machine is designed as a gentle but effective first cleaning stage for vegetables, fruits, seafood, and other food materials. Instead of relying on rough mechanical contact, it uses air bubbles, circulating water, and controlled conveying to loosen dust, sediment, and floating impurities from the product surface.
From a production-line perspective, this machine helps build a cleaner and more stable front end. Materials enter the washer evenly, move through the water tank under bubble agitation, and are discharged by the mesh belt for the next process. Optional spray rinsing at the outlet can further improve cleanliness before blanching, pre-cooling, freezing, or packing.
Technical Parameters
|
Dimensions |
5880*1600*1200mm |
|
Installed Power |
3.3kw |
|
Voltage |
380V, 50Hz |
|
Water Consumption |
0.3~0.5T/h (recycled water) |
|
Steam Consumption |
/ |
|
Cooling Capacity |
50KW (condition: +45°C~-5°C) |
|
Processing Capacity |
1.0T / H |
|
Feeding Form |
Mesh belt chain center width 600mm; frequency control; equipped with feeding, impurity removing, bubbling, spraying, and water filtration circulation devices |
|
Electrical Control |
Electrical components use Zhejiang Chint, and the transmission inverter uses Taiwan Delta |
|
Material Description |
The equipment is made of SUS304 stainless steel except standard parts such as motors and electrical components |
|
Equipment Use |
Used to cool blanched fruits and vegetables, reducing the center temperature to about 15°C |
|
Dimensions |
4660*1150*1330mm |
|
Installed Power |
2.25kw |
|
Voltage |
380V, 50Hz |
|
Water Consumption |
5 ~ 6T / H (including spray cooling water) |
|
Steam Consumption |
/ |
|
Cooling Capacity |
/ |
|
Processing Capacity |
1.5 ~ 2.5T / H |
|
Feeding Form |
Mesh belt chain center width 600mm; frequency control; equipped with feeding, impurity removing, bubbling, spraying, and water filtration circulation devices |
|
Electrical Control |
Electrical components use Zhejiang Chint, and the transmission inverter uses Taiwan Delta |
|
Material Description |
The equipment is made of SUS304 stainless steel except standard parts such as motors and electrical components |
|
Equipment Use |
Pre-cools precooked fruits and vegetables with normal temperature water; often used in vegetable dehydration and quick-freezing lines |
Product Features
• Bubble-assisted washing reduces manual rinsing work while protecting delicate materials.
• Circulating water and optional filtration help lower water consumption during continuous operation.
• The conveying speed can be adjusted to match different cleaning times and production capacities.
• Food-grade stainless steel construction supports easy cleaning and long service life.
Q&A
Q: What details do I need to submit prior to model selection?
A: Share your product type, size specs, raw material inlet temperature, required outlet temperature, hourly production capacity and workshop layout, allowing us to recommend the most suitable machine setup.
Q: Do you offer bespoke machine solutions?
A: Bespoke service is available. We can modify machine length, width, conveyor height, power supply type, food contact materials and connection styles to align with your production line layout.
Q: Is this Air Bubble Washing Machine applicable to food processing plants?
A: It is engineered exclusively for food factory use with stainless steel frames that meet food hygiene requirements. Cleaning openings can be redesigned to fit your workshop conditions.
Q: Can this equipment work alongside other processing units?
A: It can be coupled with washing, blanching, cooling, drying, freezing, grading and packaging machinery to create a fully continuous production workflow.
